Project Details
The Challenge
A national power grid operator was facing mounting operational challenges with their aging inspection fleet. Their existing multirotor UAVs, while capable of short-range visual inspections, suffered from severely limited flight endurance and payload capacity. Each inspection mission covered only a few kilometers of transmission lines before requiring battery swaps, making large-scale grid patrols logistically complex and costly.
The operator needed a new solution — a fixed-wing VTOL platform capable of covering extended distances with a high-resolution thermal and optical payload, while remaining portable enough for rapid deployment across remote substations and mountainous terrain. The aircraft had to withstand harsh outdoor conditions, including high winds and temperature extremes, while delivering consistent, repeatable performance.
The Solution
The operator turned to our team for a custom composite UAV solution. After a thorough Requirement Review — during which we assessed the application scenarios, technical specifications, performance targets, and production volume — our engineering team conducted a comprehensive Engineering Evaluation.

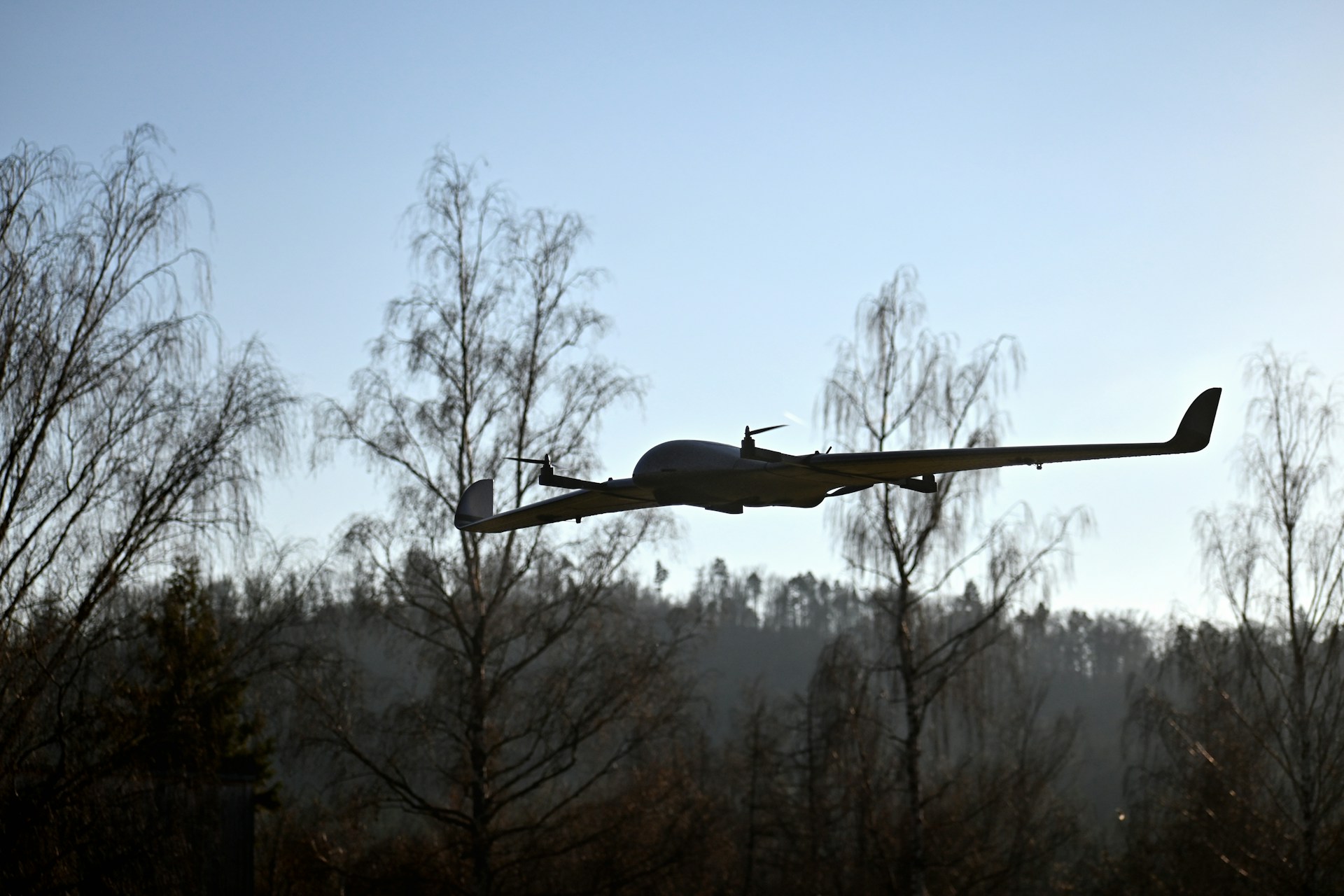

The challenge was twofold: the platform needed exceptional structural stiffness to support a 3 kg dual-sensor payload, yet had to remain lightweight enough to achieve the required 3-hour endurance. Our team proposed adapting the ZF-15 Electric VTOL UAV Platform — a compact, all-electric fixed-wing design featuring a standard aerodynamic layout and aviation-grade carbon fiber composite airframe.
However, the standard ZF-15 configuration required modifications. The customer's payload package demanded a larger fuselage bay with customized mounting interfaces, and the wing structure needed reinforcement to accommodate the additional weight of the thermal imaging system without compromising aerodynamic efficiency.
Our engineers delivered Custom Design & Product Development services, including structural engineering, 3D CAD modeling, material selection, and prototype development. Leveraging our specialized expertise in composite structures, we developed a tailored solution that balanced weight reduction, structural integrity, and operational reliability.
The prototype underwent rigorous validation — including dimensional inspection, structural integrity verification, and functional performance testing. Following customer approval, we launched volume production using advanced composite molding technologies, including CNC machining and vacuum-assisted processing.
The Results
The custom ZF-15 platform delivered transformative improvements:
Flight Endurance: 3 hours with a 3 kg payload — a 400% increase over the operator's previous multirotor systems
Coverage Range: Each sortie now covers over 60 kilometers of transmission lines, reducing the number of required flights by more than 70%
Deployment Efficiency: Tool-free assembly enables field teams to deploy the aircraft in under 5 minutes
Data Quality: The high-stiffness carbon fiber airframe minimizes vibration, ensuring crisp thermal and optical imagery even in turbulent conditions
Operational Reliability: The aviation-grade composite structure withstands operating temperatures from -20°C to 55°C and wind resistance up to 13.8 m/s during cruise
Customer Feedback
"The custom ZF-15 has completely transformed our inspection workflow. What used to take a team of four technicians an entire week to cover can now be accomplished by two people in a single day. The aircraft's reliability in high-wind conditions has been particularly impressive — we're now conducting inspections that were simply impossible with our previous fleet."
Why This Project Matters
This project exemplifies our core commitment: delivering reliable, cost-effective, and highly customized composite UAV solutions that help customers accelerate product development and achieve exceptional performance in real-world applications.
From initial concept through prototype development to volume production, our integrated engineering and manufacturing capabilities enabled a rapid development timeline while maintaining rigorous quality standards. Every stage — from structural design and material selection to process optimization, production, inspection, and final delivery — was governed by our comprehensive quality control system.
Looking Ahead
Building on the success of this project, the power grid operator has now placed orders for additional custom platforms and is exploring adaptations of the ZF-30 and ZF-40 for heavier payload missions. The collaboration has evolved into a long-term OEM partnership, with our team providing ongoing technical support and production follow-up.
Whether you require a single prototype or ongoing volume production, our manufacturing system supports the full product lifecycle — from prototype samples and pilot production to large-scale manufacturing. We are committed to building reliable and lasting relationships with customers worldwide.
