Product Description

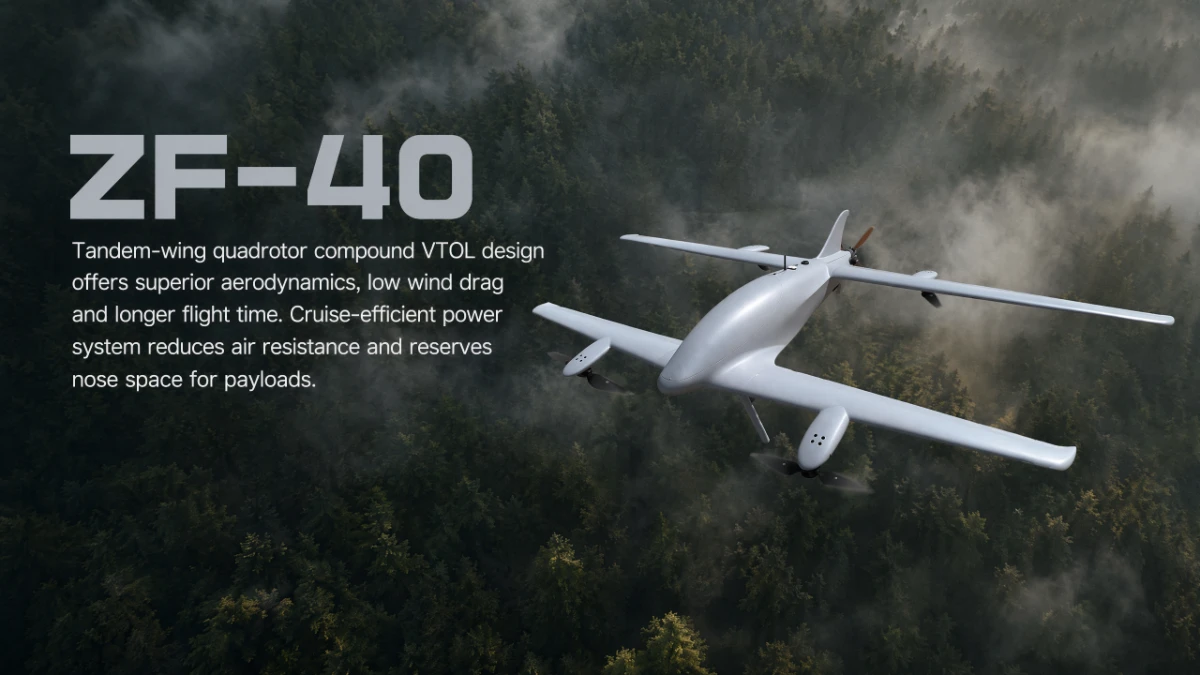

Tandem-wing quadrotor compound VTOL design offers superior aerodynamics, low wind drag and longer flight time. Cruise-efficient power system reduces air resistance and reserves nose space for payloads.
|

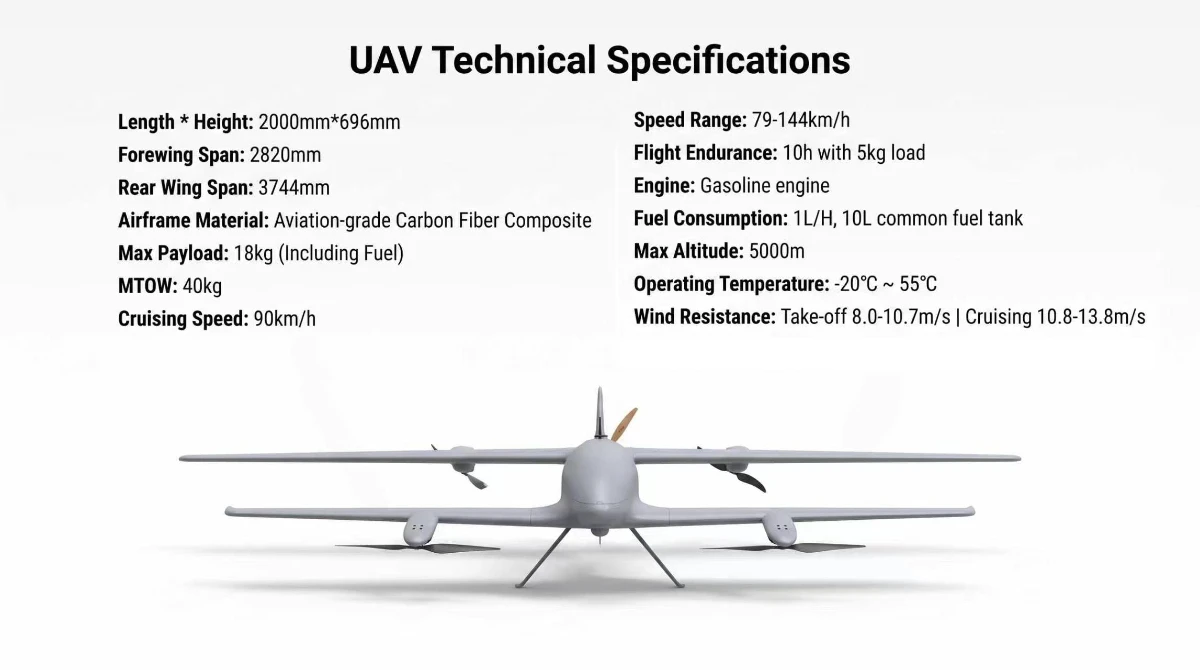

UAV Technical Specifications |
|
|
Length * Height |
2000mm*696mm |
|
Wingspan |
Forewing Span: 2820 mm Rear Wing Span: 3744 mm Rear Wing Span: 3744 mm |
|
Airframe Material |
Aviation-grade Carbon Fiber Composite |
|
Max Payload |
18 kg（Including Fuel） |
|
MTOW |
40 kg |
|
Cruising Speed |
90km/h |
|
Speed |
79-144km/h |
|
Flight Endurance |
10h with 5kg |
|
Engine |
Gasoline engine |
|
Fuel Consumption |
1L/H, common fuel tank 10L |
|
Max Altitude |
5000 m |
|
Operating Temperature |
-20℃ ~ 55℃ |
|
Wind Resistance |
Take-off 8.0-10.7m/s | Cruising 10.8-13.8m/s |
■ Long Endurance: 12 Hours
■ Tool-Free Deployment
■ Dual Control Surfaces: Front and rear wing
■ Cooperative Rotor Control Technolog
Application Scenarios: Border & coastal patrol, security surveillance, pipeline inspection, forest ecology monitoring, water conservancy & maritime survey, disaster mapping, aerial surveying, highway & railway inspection,and more.
